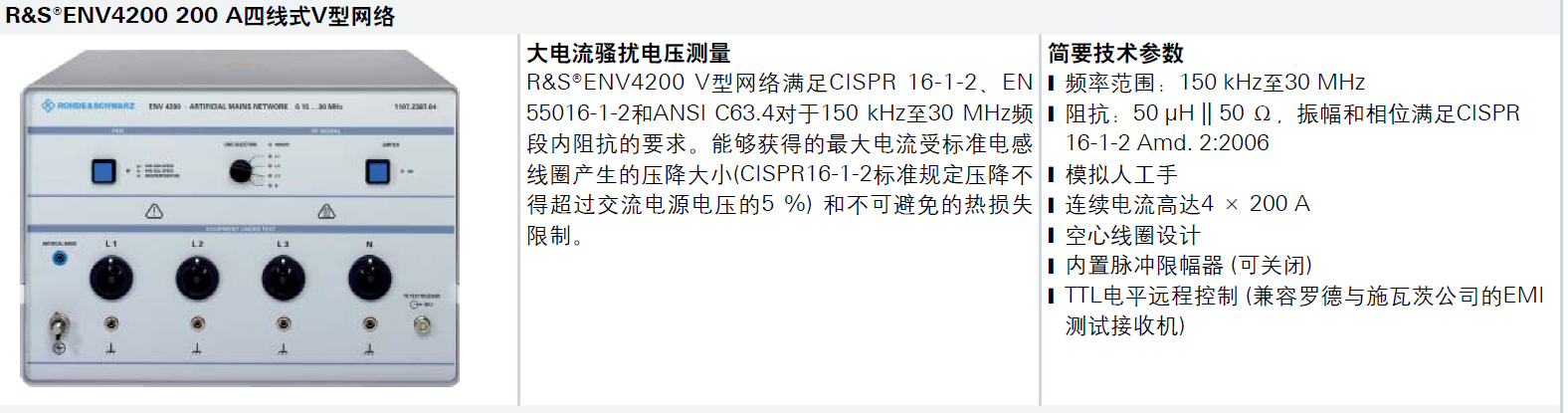

R&S®ENV-4200 200A 四线V型网络
干扰电压测量
Specifications
| Specifications | ||
| Frequency range | 150 kHz to 30 MHz | |
| Simulated impedance | 50 μH || 50 Ω | |
| Error limits in line with CISPR16-1-2 | magnitude and phase | ±20% and ±11.5° |
| Decoupling attenuation between power supply and measuring receiver port in line with CISPR16-1-2 | 150 kHz to 30 kHz | > 40 dB |
| Test path to EUT | ||
| Maximum permissible constant current | N, L1, L2, L3 | 200 A |
| Mains voltage | N, L1, L2, L3 (star/delta voltage) | 0 V to 400 V/690 V AC + 10% |
| DC voltage | N, L1, L2, L3 | 0 V to 690 V DC + 10% |
| Peak current | N, L1, L2, L3 | 250 A (2 minutes) |
| Test path to measuring receiver | ||
| Maximum permissible RF disturbance power from EUT | 5 W | |
| Voltage division factor between EUT and measuring receiver port | built-in attenuator pad, calibration data supplied with V-network | 10 dB – 0.5 dB/+ 2.5 dB |
| Response threshold of built-in pulse limiter | can be switched off | 140 dB (µV) (nom.) |
| Power supply for fans and control logic | ||
| Mains voltage | 115 V setting | 100 V to 120 V AC ± 10% |
| 230 V setting | 220 V to 240 V AC ± 10% | |
| Mains frequency | 50 Hz to 60 Hz ± 5% | |
| Power consumption | 100 VA (nom.) | |
| Connectors | ||

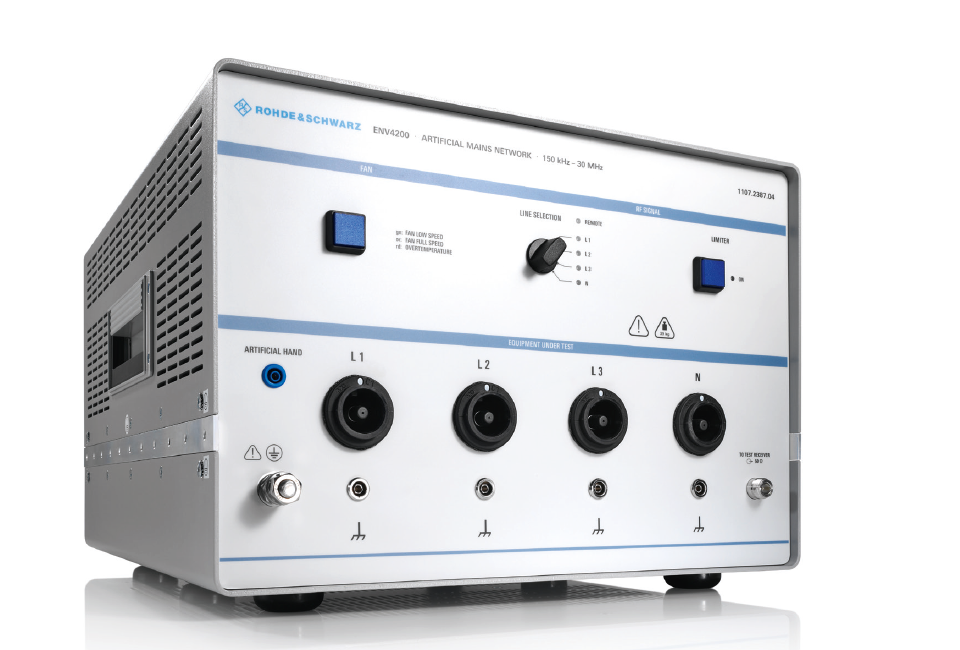

| Mains and DC voltage output | front panel, N, L1, L2, L3 | panel connector (Multi-Contact) |
| RF output | front panel, TO TEST RECEIVER | N female, 50 Ω |
| Artificial hand | front panel | 4 mm connector, female |

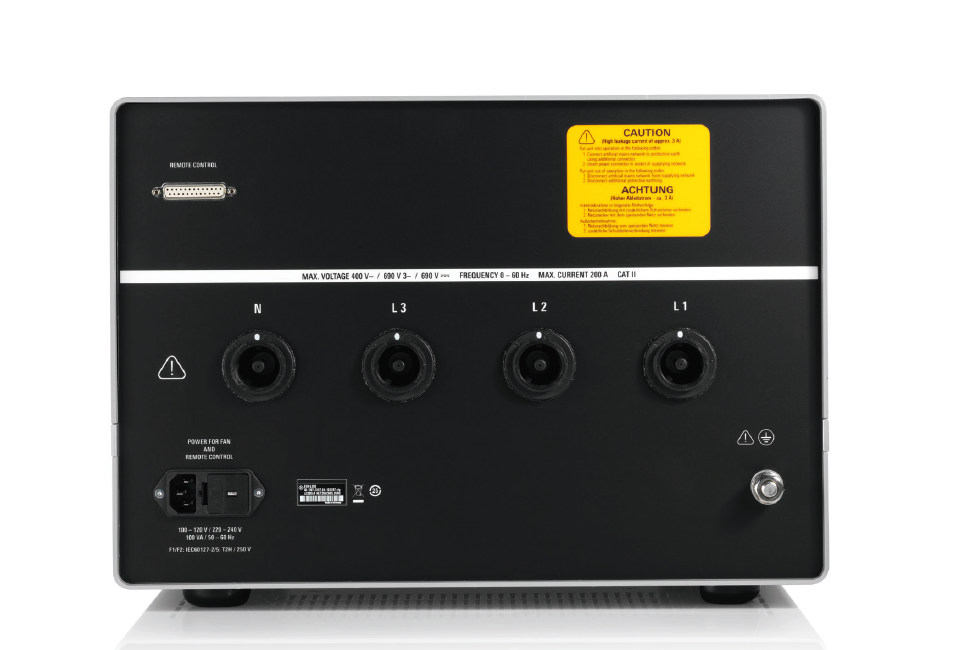

| Mains and DC voltage input | rear panel, N, L1, L2, L3 | panel connector (Multi-Contact) |
| Mains voltage input (auxiliary voltage) | rear panel, POWER FOR FAN AND REMOTE CONTROL | low-temperature connector with mains filter |
| Remote control input | rear panel, REMOTE CONTROL | 25-contact, D-Sub, female |
| Protective earth | front panel and rear panel | M10 threaded bolt |
| RF reference ground | on both sides | ground bar with eleven M6 threads |
| General data | ||
| Operating temperature range | +5°C to +45°C | |
| Storage temperature range | –40°C to +70°C | |
| Dimensions | W × H × D, overall | 446 mm × 325 mm × 595 mm |
| Weight | 39 kg | |
| Electrical safety | observe notes in manual | in line with EN61010-1 |
| EMC | in line with IEC/EN61326-1 | |
| Emission | class B, in line with residential environment requirements | |
| Immunity | in line with industrial environment requirements | |
